Get Your Bed Ready

Setup Your Bed

Setup 1: Print Bed Sheet

Clean the bare surface (no oil or dust)
Remove some of the adhesive cover from the Bed Sheet.
Pick the front left corner.
Stick the corner of the Bed Sheet to the bed.

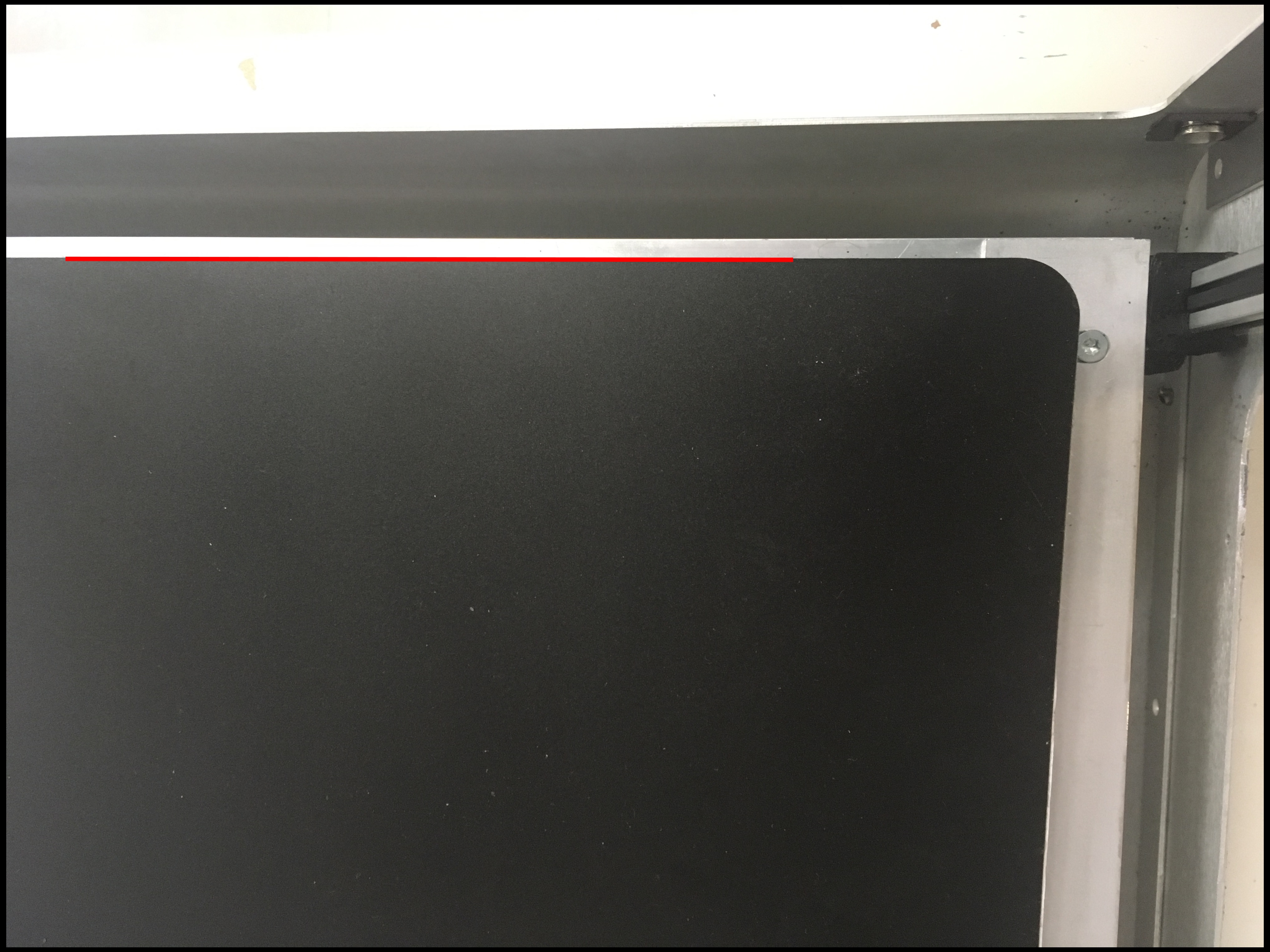

NOT ALIGNED
Line up the edges.
ALIGNED
Slowly press the Bed Sheet corner into bed.
Check the edges line up (again).
Continue pressing down the rest of the Bed Sheet in a WIPING motion.
Check the edges line up (again).
Remove the rest of the adhesive cover.
Finish sticking the rest of the Bed Sheet in a WIPING motion.

Setup 2: Glass Bed

Pick a position.
Get Glass Bed Clamp
Open Glass Bed Clamp with a flathead screwdriver
Lay & Align glass bed onto the bed.
Clamp bed.
Slide clamp all the way in.
Repeat until all positions are clamped.

Setup Bed Probe

Press Home All Button

Send the extruder toward center

1
G1 X187 Y154
Copied!

Minor G-code Lesson

G1 = Linear Movement
X### = X position
Y### = Y position
Z### = Z position

Heat The Bed

1
M140 S60
Copied!

Minor G-code Lesson

M140 = Set Bed Temperature
S### = Bed Temperature ( Celsius)

Code Inputs

1
G31 P999 X-40 y28.5 Z0
2
G29 S2
3
M564 S0
Copied!
Wait for bed to reach its temperature.

Engage Bed Probe

DISENGAGED
ENGAGED

Move Bed To Position

1
G1 Z15
Copied!

Probe

1
G30
Copied!

Disengage Bed Probe

Move Bed Closer

1
G1 Z0
Copied!

Move Bed To Nozzle

Use these two buttons to move the bed up.
Ignore the yellow home blocks (for now).
Switch to the smaller 0.1 mm step when you get close to the nozzle

Record Z offset

More Code Inputs

Replace ### with the Z offset number from the last step.
The number is POSITIVE ONLY.
1
G31 P999 X-40 Y28.5 Z###
2
M564 S1
Copied!

Move Bed To Position

1
G1 Z15
Copied!

Engage Bed Probe (Again)

Probe (Again)

1
G30
Copied!

Disengage Bed Probe (Again)

Check nozzle height

1
G1 Z0
Copied!
The bed should be about a paper sheet away from the nozzle.

Save Into SD card.

Go to the System Editor tab under Settings
Look for "machine_zprobe.g" (and click)
Go to the last line of code.
Replace the Z### (e.g. Z0.95) with your new Z offset number (POSITIVE ONLY).
Save changes.
Done.

Map The Bed

Also known as: Bed Compensation

Note:

Assumption: Your bed probe has been setup.

Home Printer

HOMED
NOT HOMED

Heat The Bed

1
M140 S60
Copied!

Move Bed To Position

1
G1 Z15
Copied!

Engage Bed Probe

Probe

1
G30
Copied!

Read The Bed

1
G29
Copied!
Wait for the probing to finish.
Check for any signs of green.
    There should be some green.
    If not, your bed probe is NOT setup.
Example: Proper Use of Mesh Compensation
Click close.

Move Bed Away

1
G1 X187 Y154 Z100
Copied!

Disengage Bed Probe

You are ready to print.
